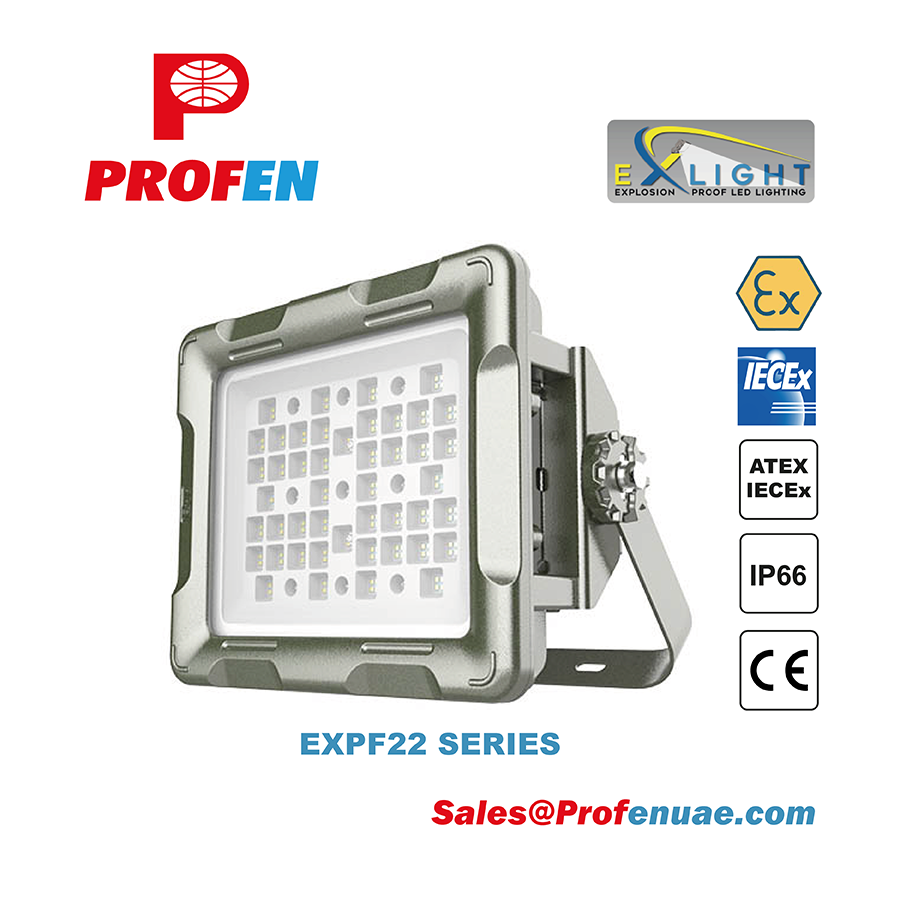

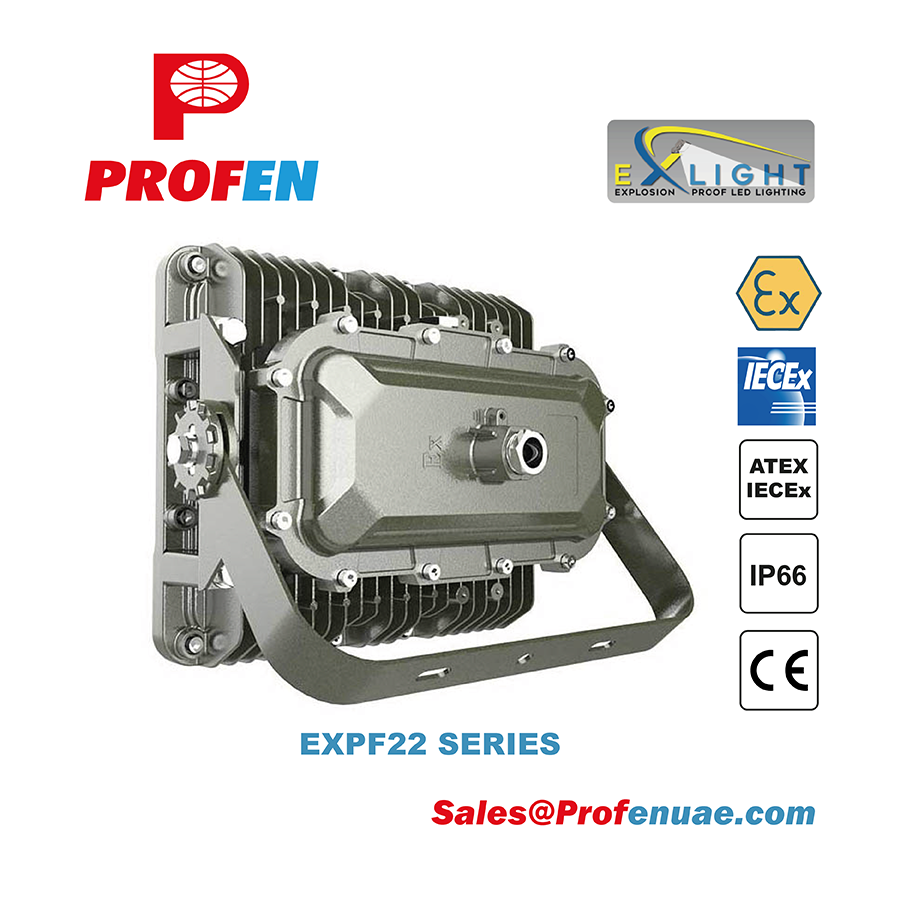

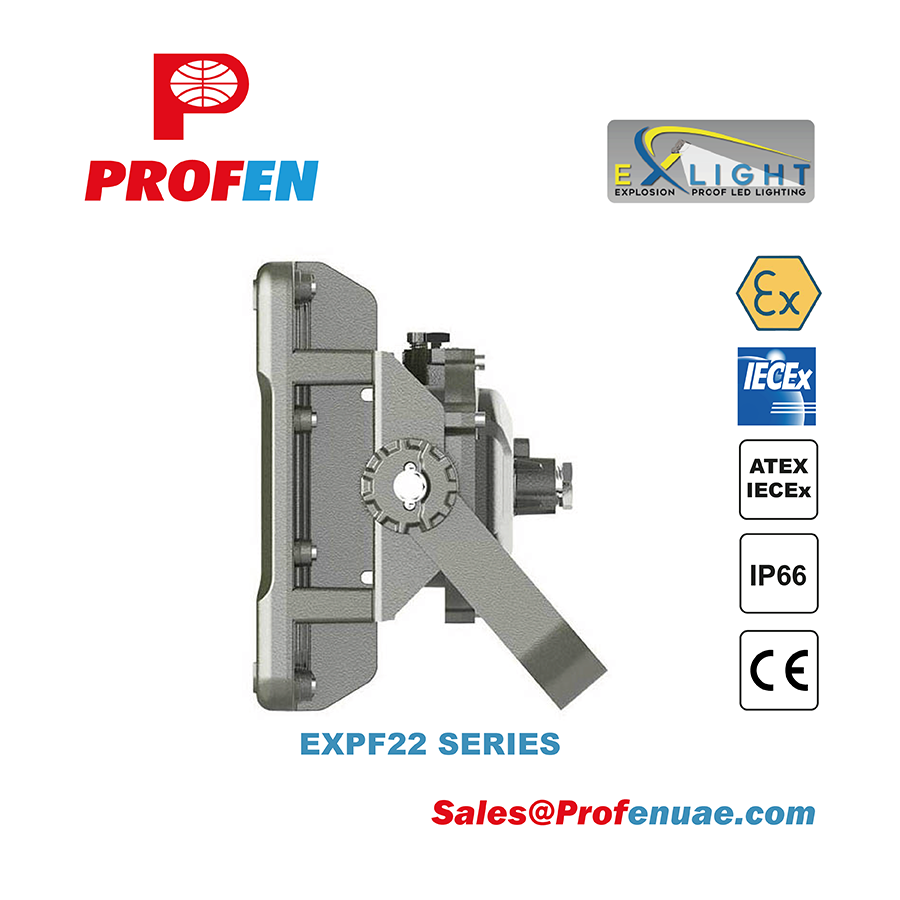

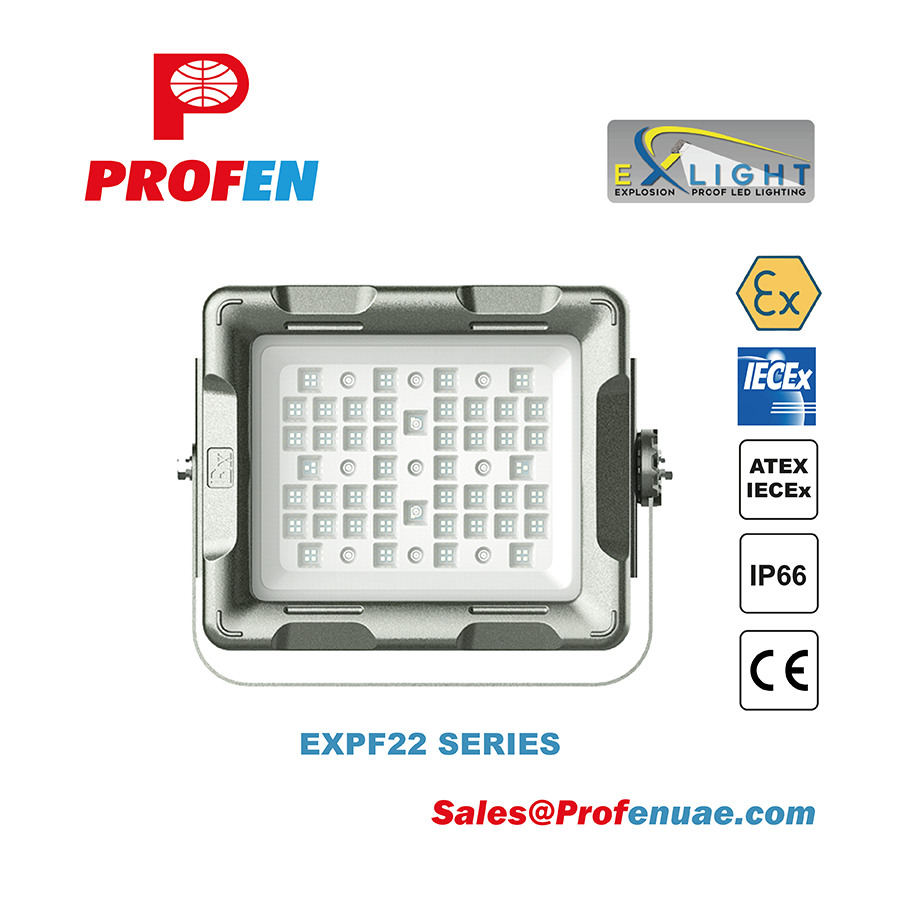

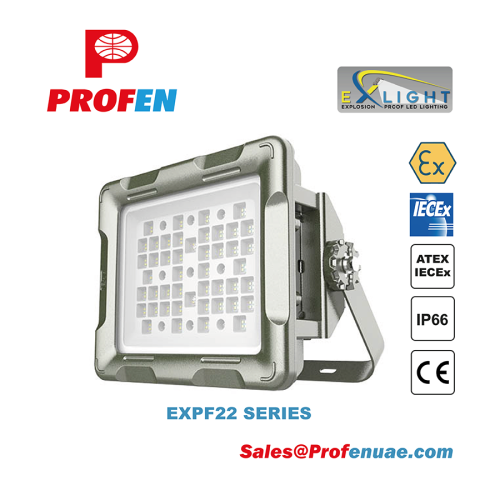

EXPF22-Explosion Proof LED Flood light

Ask For Price

Clear

MODEL : EXPF2205, EXPF2201, EXPF2215, EXPF2202, EXPF2225, EXPF2203

Product Code: 8260

EXPLOSION PROOF LED FLOODLIGHT



Range of application:

  • Widely used in petroleum mining, oil refining, chemical industry, military industry, and another dangerous environment for general lighting and operational lighting;
  •  It could work in Zone 1 and Zone 2 of the explosive gas environment;
  •  It could work in Zone 21 and Zone 22 of flammable dust environments;
  •  It could work for T1-T6(T5) of temperature group;
  •  It could work for energy-saving renovation projects and maintenance & replacement for difficult places;
  •  It could work for places with high protection requirements and poor wet environments.



Product Features

  • Electrical components: The light source uses first-line brand LED light-emitting chips, ultra-high light efficiency, average service life up to 100,000 hours, the power supply is processed with the latest wide voltage technology, with constant current output, short circuit, overvoltage protection, and other functions.
  • Heat dissipation design: The radiator is extruded with an integrated profile, the structure is tight, and it has excellent heat conduction and heat dissipation performance.
  • Optical lampshade: High-strength optical grade PC material integrated injection molding,
  • corrosion resistance and impact resistance, light transmittance can reach 95%~98%, light irradiation is even and soft, anti-glare.
  • Protection and anti-corrosion: The surface of the lamp body radiator is anodized, the die-casting parts are treated with high-pressure
  • electrostatic spraying, the screw fasteners are made of stainless steel, and the high-precision processing technology is combined with the characteristics of high anti-corrosion, high waterproof and high dust resistance. The lamps can work normally for a long time in various harsh environments.



ModelEXPF22 SeriesPower factor>0.95
Rated Voltage24V AC/DC /  110VAC / 220VACWorking Temperature-30~50℃
Rated Power50W/100W/150W/200W/250W/300WType of light sourceLED
Frequency50/60HzCorrelated color Temperature3000-6000K
Protection GradeIP66Color rendering index≥70RA
Beam angle120°Light source life>100,000h
Base specificationsCREE 3030Start Time≤0.2s
Anti-corrosion levelWF2Executive StandardGB3836.1、GB3836.2
Explosion-proof gradeEx db IIC T6 Gb

Ex tb IIIC T80℃ IP66

Weight8.9 KG / 12.5 KG
Light effect120lm/wSize324*276*261 / 425*315*296mm


T
est Report

Light distribution diagram

Illuminance Figure




Dimensions


Installation

Brands

EXLIGHT

Select Voltage

AC110V, AC220-240V, AC24V, DC24V

Power

100W, 150W, 200W, 250W, 300W, 50W

Select Model

EXPF2201, EXPF2202, EXPF2203, EXPF2205, EXPF2215, EXPF2225

×
