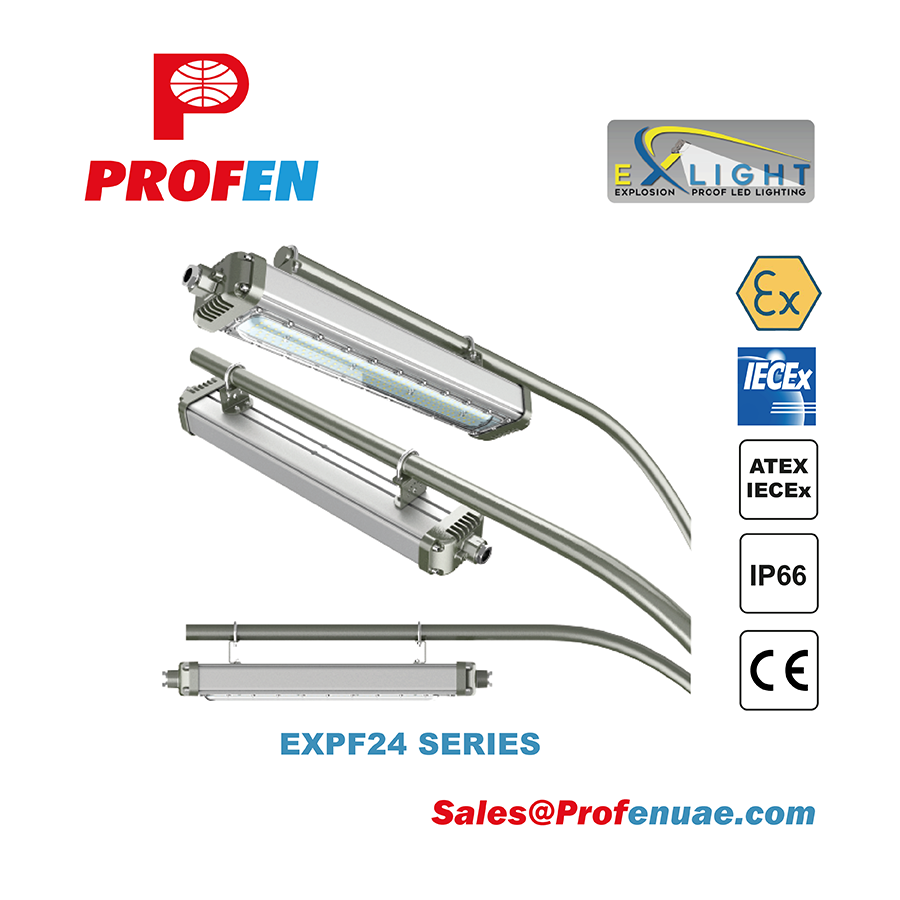

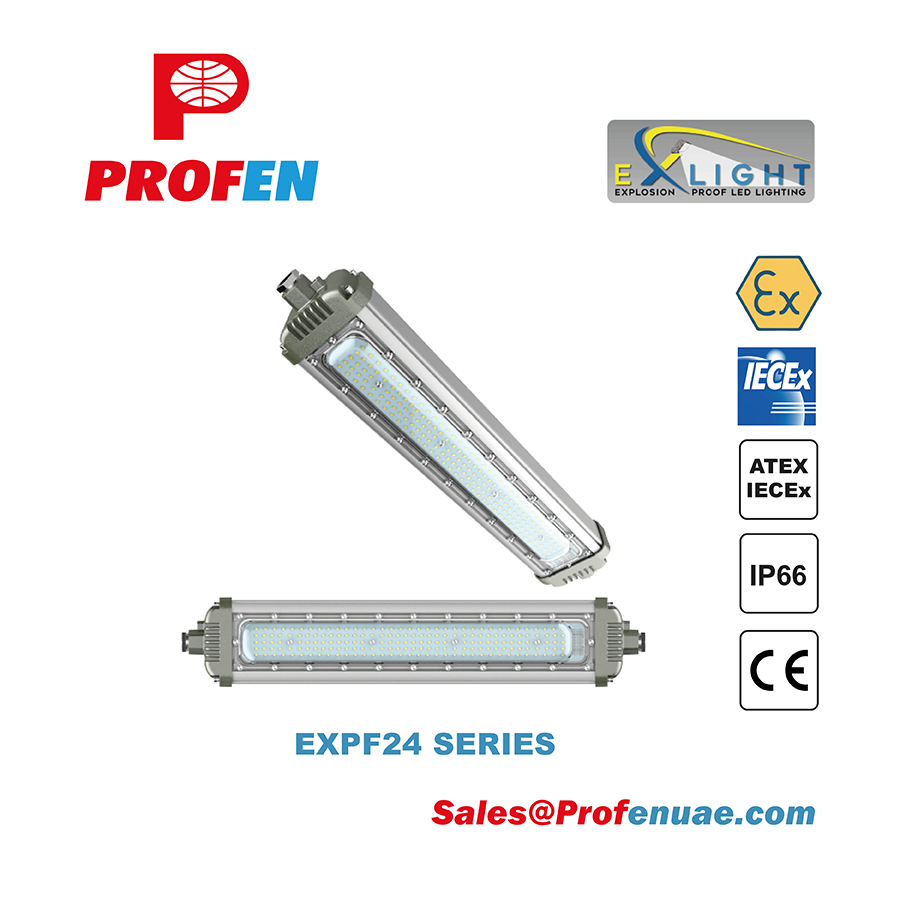

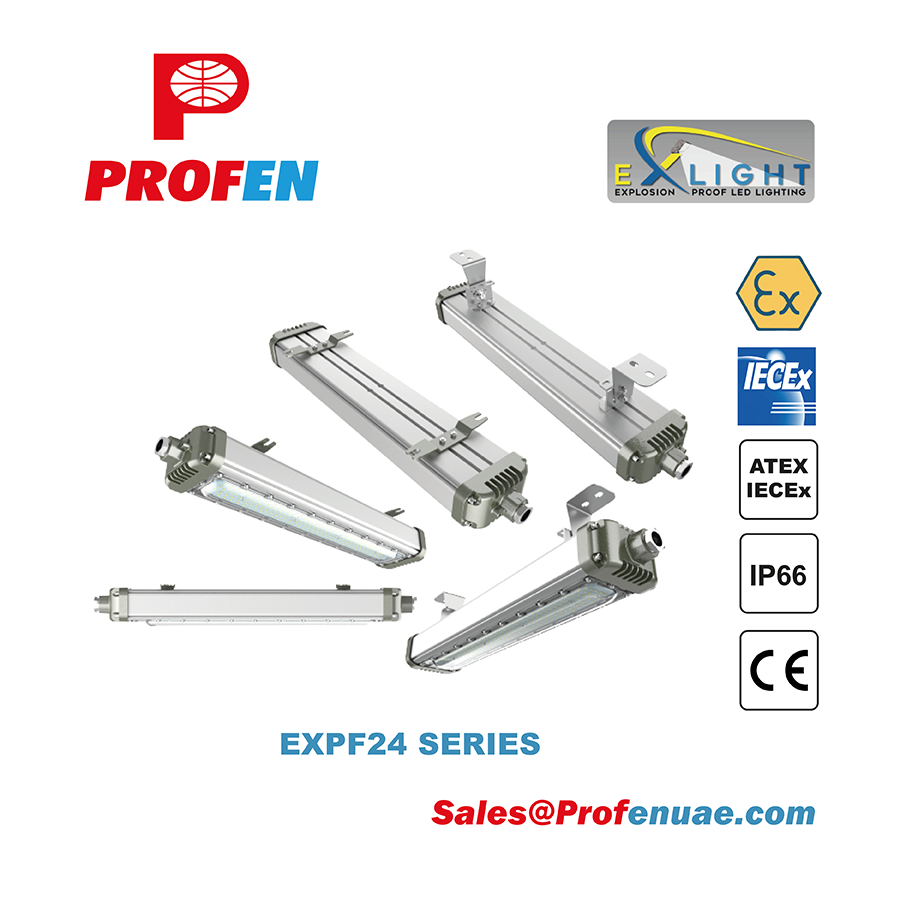

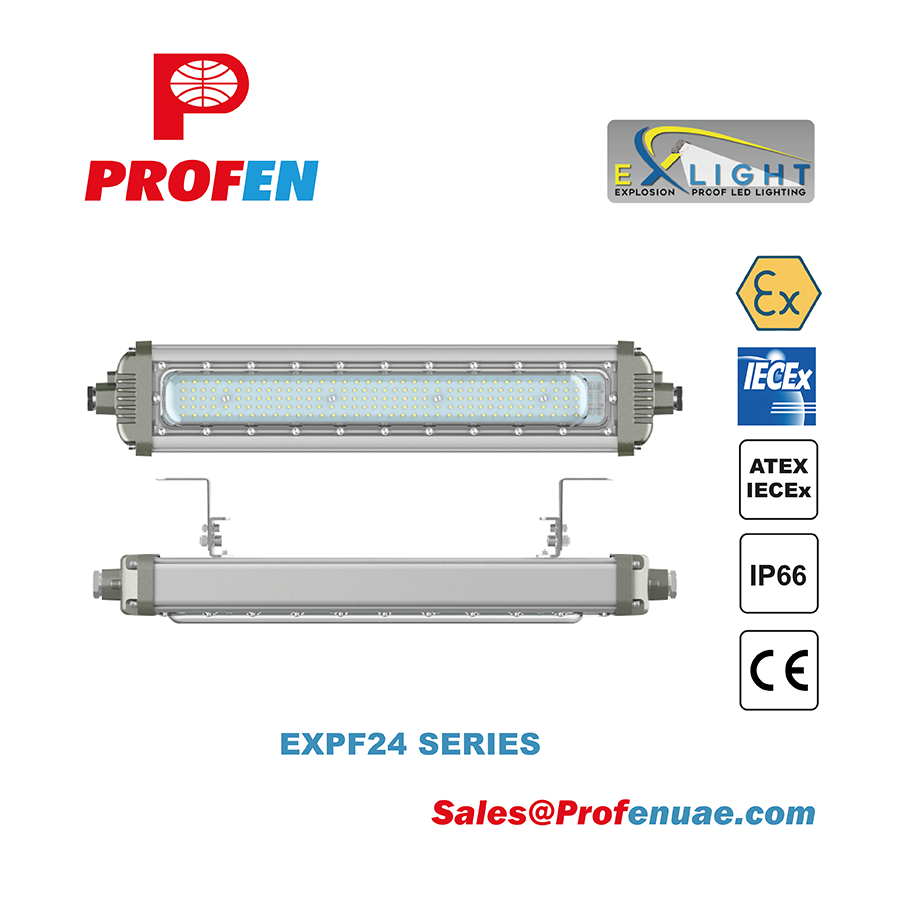

Explosion proof LED linear light

Model : EXPF24

Product Code: 52

Range of application:

  • Widely used in petroleum mining, oil refining, chemical industry, military industry, and another dangerous environment for general lighting and operational lighting;
  •  It could work in Zone 1 and Zone 2 of the explosive gas environment;
  •  It could work in Zone 21 and Zone 22 of flammable dust environments;
  •  It could work for T1-T6(T5) of temperature group;
  •  It could work for energy-saving renovation projects and maintenance & replacement for difficult places;
  •  It could work for places with high protection requirements and poor wet environments.



Product Features

  • Electrical components: The light source uses first-line brand LED light-emitting chips, ultra-high light efficiency, average service life up to 100,000 hours,
    the power supply is processed with the latest wide voltage technology, with constant current output, short circuit, overvoltage protection, and other functions.
  • Heat dissipation design: The radiator is extruded with an integrated profile, the structure is tight, and it has excellent heat conduction and heat dissipation performance.
  • Optical lampshade: High-strength optical grade PC material integrated injection molding,
  • corrosion resistance and impact resistance, light transmittance can reach 95%~98%, light irradiation is even and soft, anti-glare.
  • Protection and anti-corrosion: The surface of the lamp body radiator is anodized, the die-casting parts are treated with high-pressure
  • electrostatic spraying, the screw fasteners are made of stainless steel, and the high-precision processing technology is combined with the characteristics of
    high anti-corrosion, high waterproof and high dust resistance. The lamps can work normally for a long time in various harsh environments.



Model EXPF24 Power factor >0.95
Rated Voltage AC 110V / 220V 50/60Hz Working Temperature -30~50℃
Rated Power 20/36/40//56/60W Type of light source LED
Protection Grade IP66 Correlated color Temperature 3000-6500K
Beam angle 120° Color rendering index ≥70RA
Number of lamp beads 180pcs Light source life >100000h
Lamp bead specifications 2835 Start Time ≤0.2s
Anti-corrosion level WF2 Executive Standard GB3836.2、GB3836.9
Explosion-proof grade Ex IIC T6 Gb /Ex tD A21 IP66 T80℃ Weight 3.2Kg
Light effect 120lm/w Size 1250*125*77 / 635*125*77mm

Brands

EXLIGHT

Select Voltage

AC110V, AC220-240V

Power

20W, 36W, 40W, 56W, 60W

×
