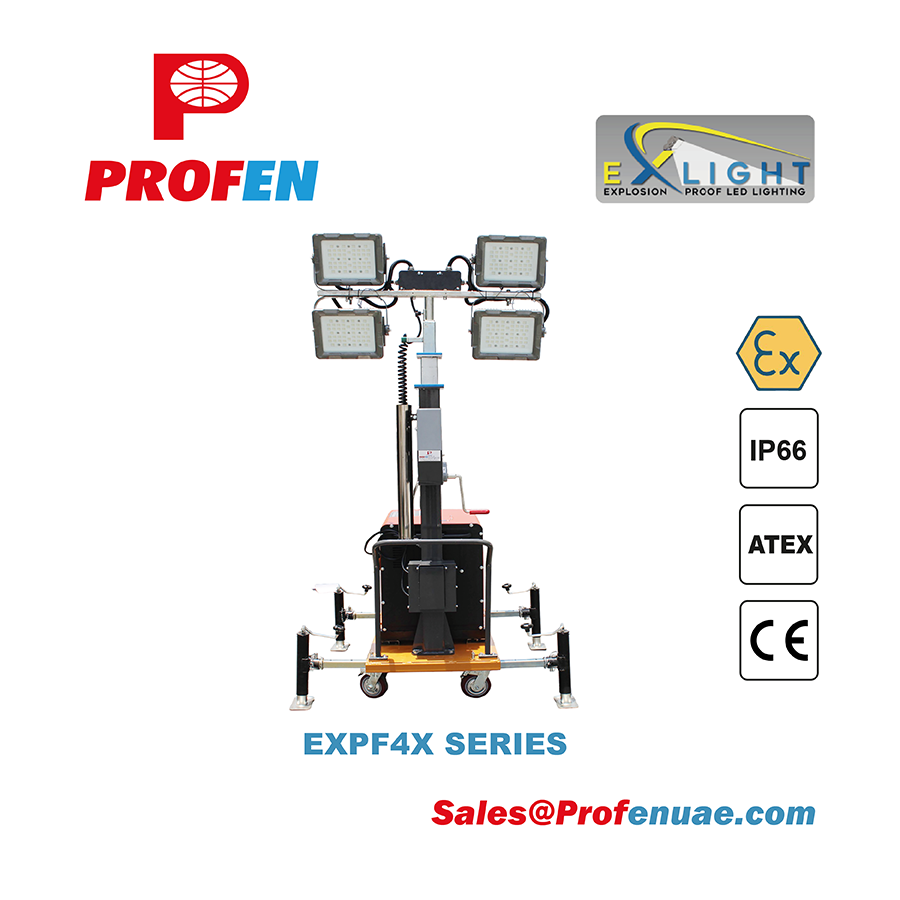

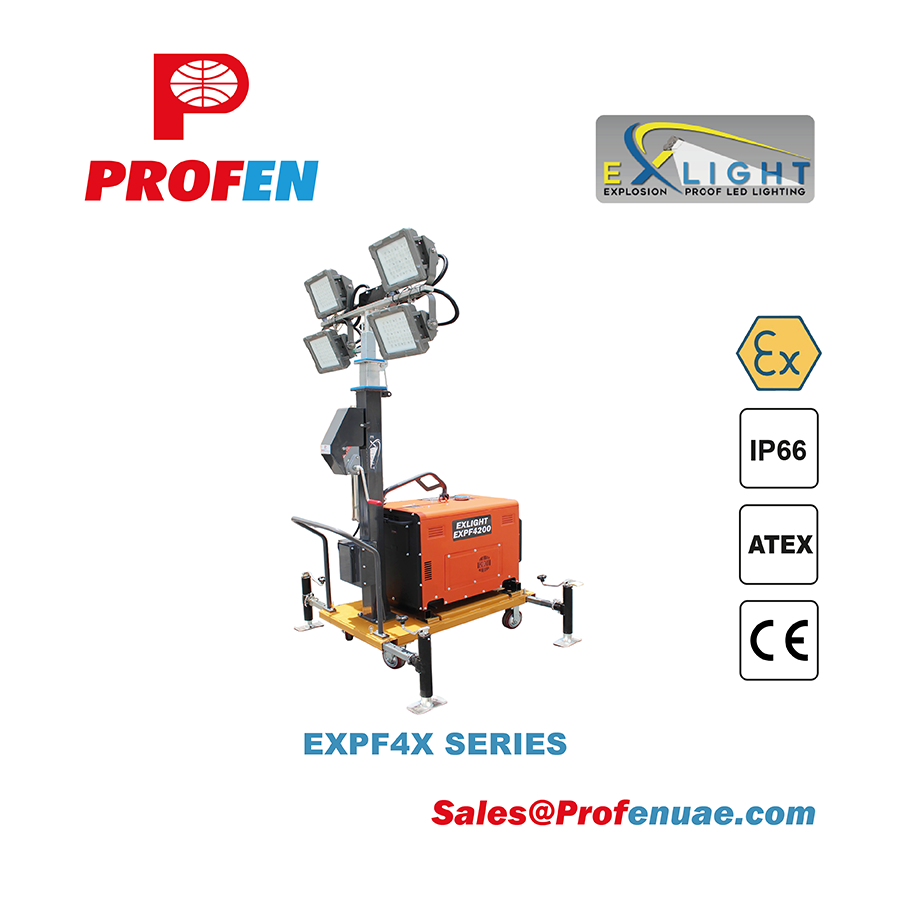

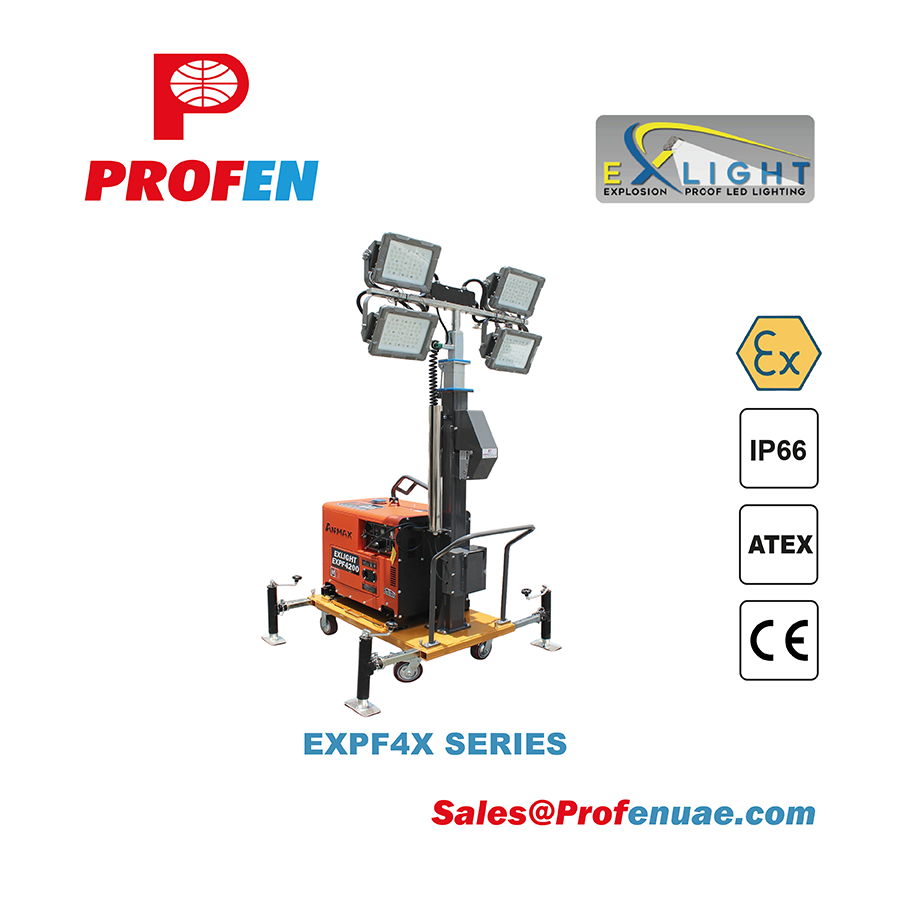

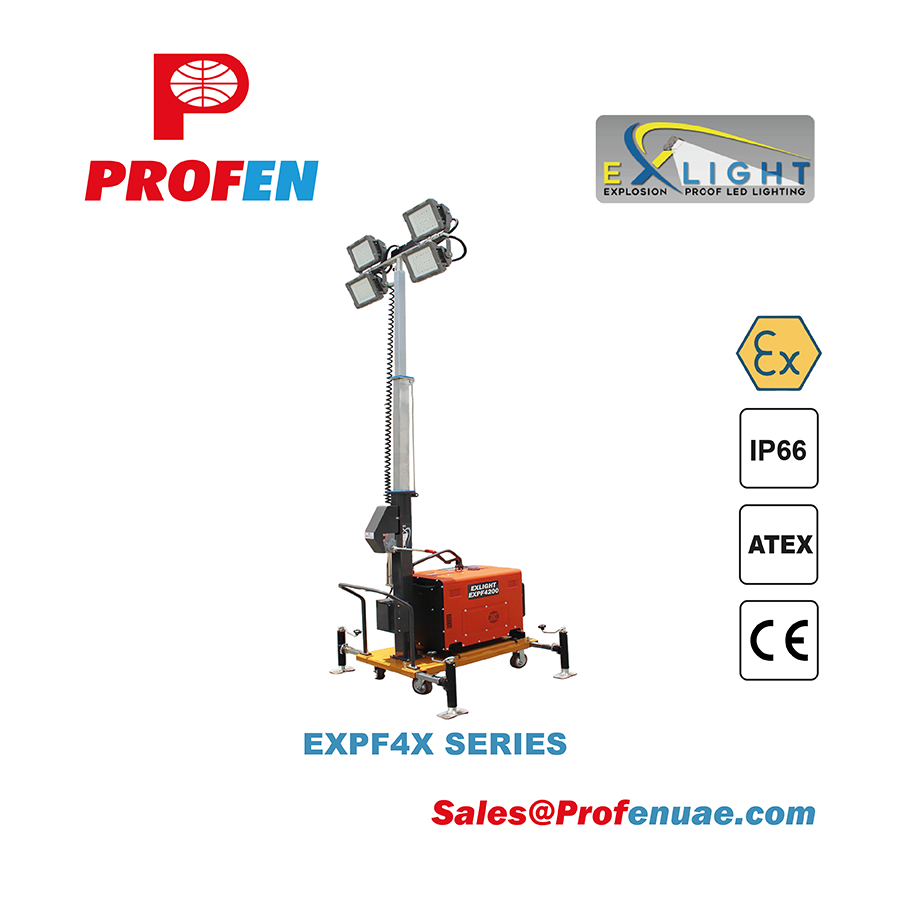

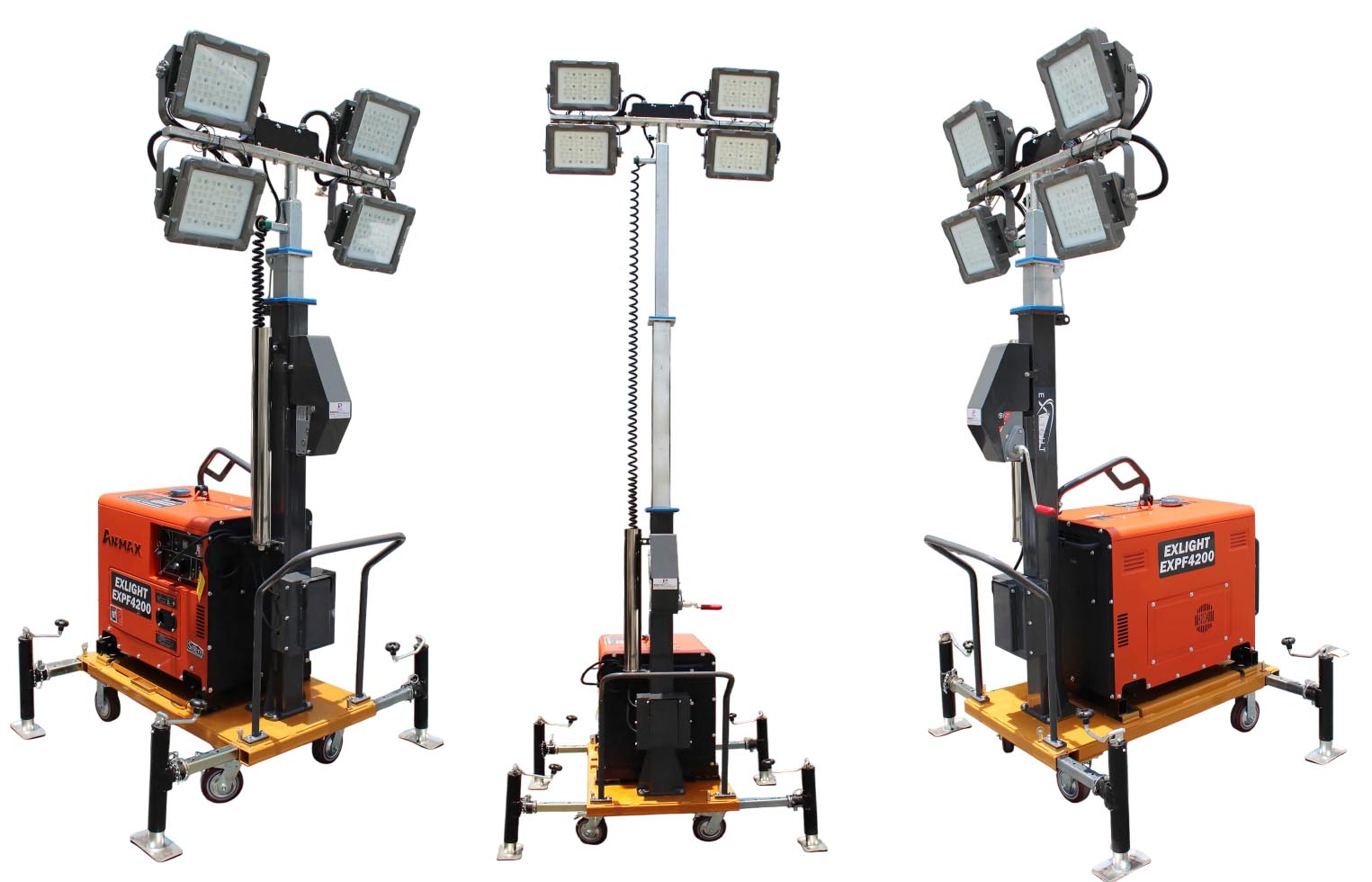

LED TOWER LIGHT Diesel Generator Type

EXPF4X SERIES – 4X100W, 4X200W, 4X300W

Ex. Proof and General Purpose LED projection Tower Light

Ex. Proof zone 2 AREA for heavy duty application

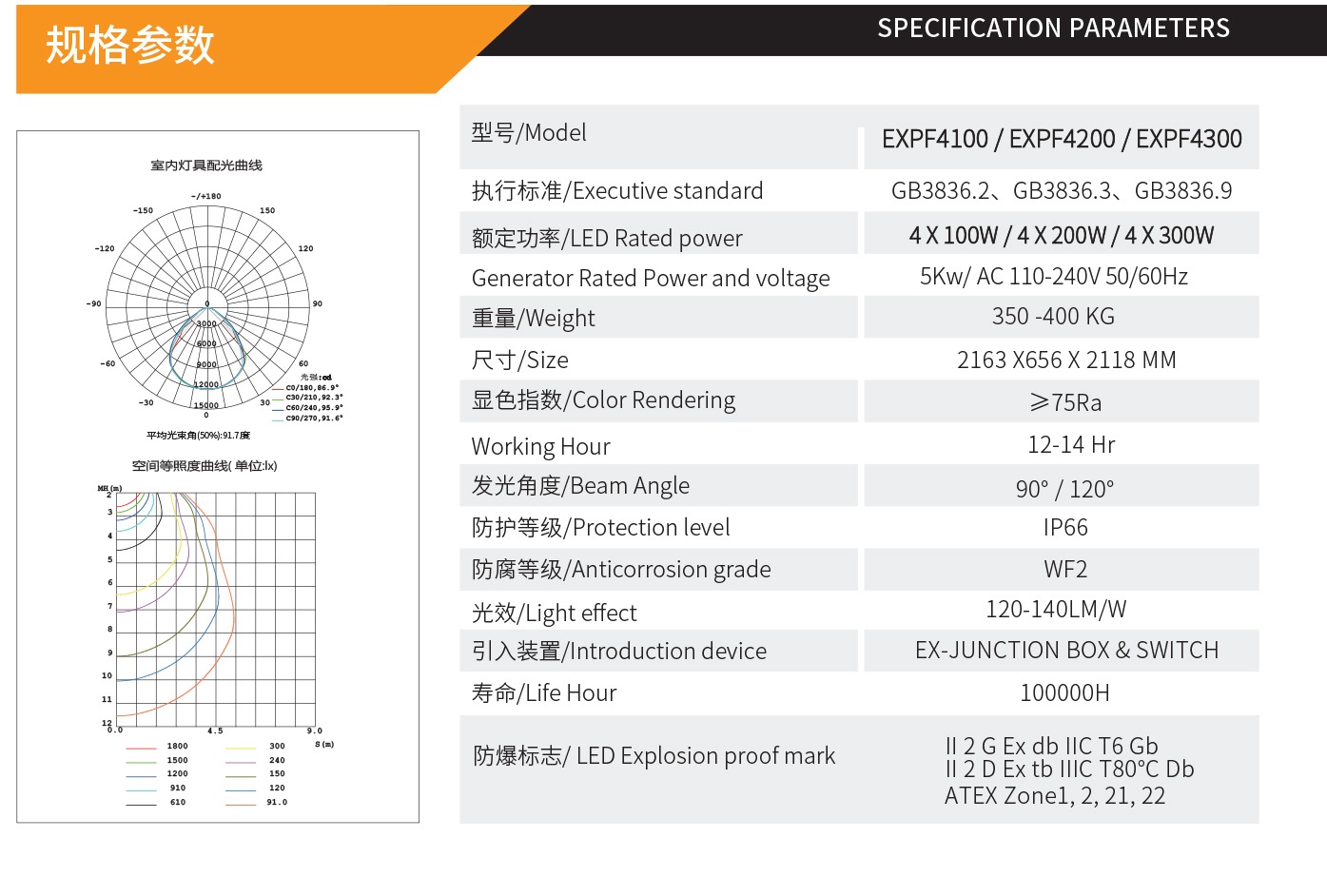

Light Source: LED with Meanwell Power Supply

Rated Power: 4*100W, 4*200W, 4*300W

Generator Power: 5KW

Rated Voltage: AC220-240V

Telescopic Height: 1.8-4.5M,

Weight: 350-400KG

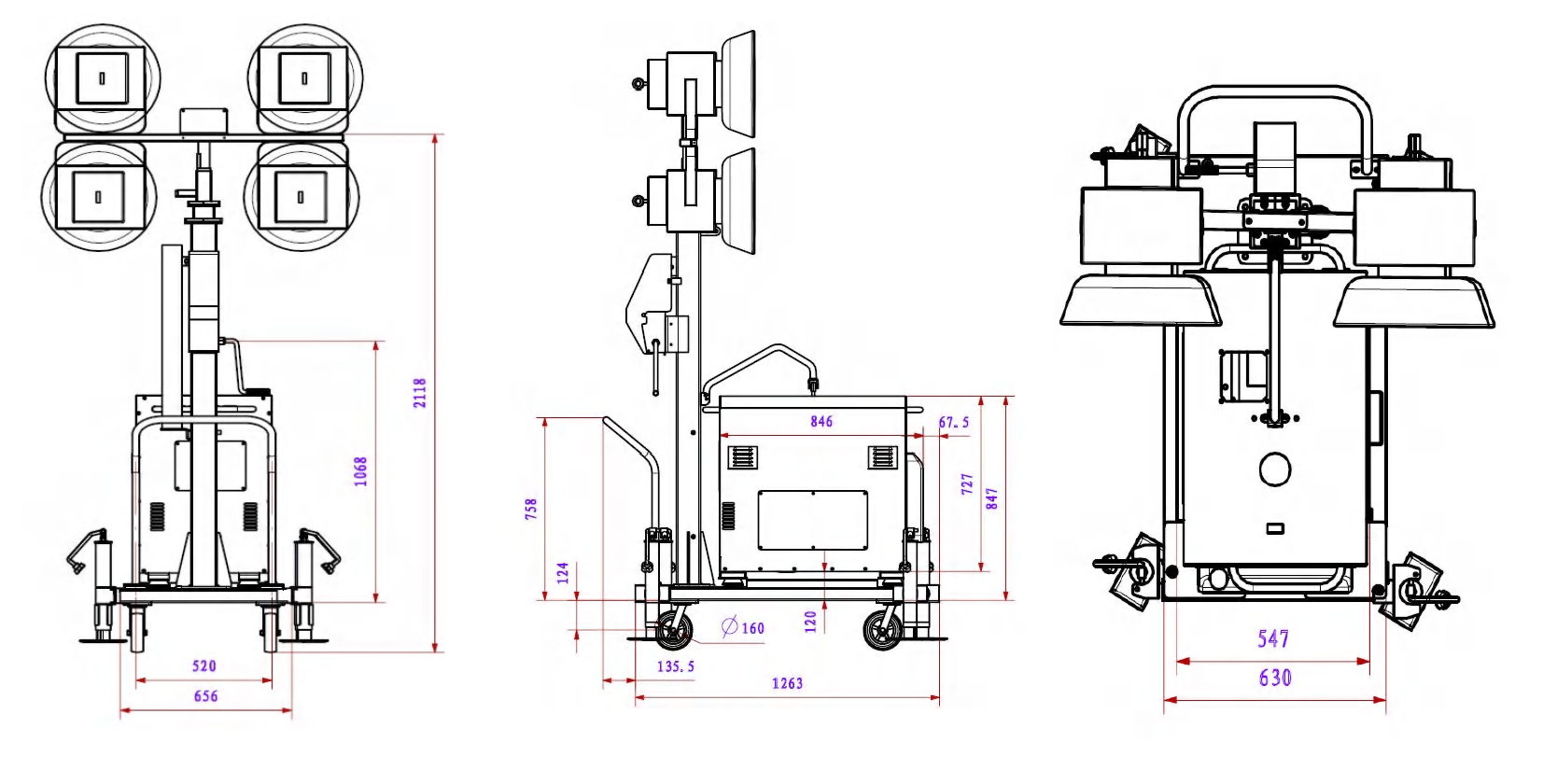

Size: 2163*656*2118MM

Lighting time: 12-14 Hours

Protection Level: IP66

Warranty 3 years against manufacturing defects.

This product has good explosion-proof function and is suitable for explosives of IIA, IIB and IIC include gas environment and various inflammable and explosive places. It’s mainly used in railway, electric power, metallurgy, petroleum, petrochemical, chemical, steel, aviation, ship and various types of factories, stations, large facilities, venues and other places.

1. Adopt imported LED light source, the average service life is up to 100,000 hours, the power supply adopts wide voltage processing, which can realize constant current output and has short circuit and
over voltage protection, greatly improves the service life of the lamp.

2. The radiator adopts polymer nano-materials, which is beneficial to heat radiation.
The independent upper and lower ventilation convection outer circumferential array heat sink structure design greatly avoids the phenomenon that the conventional LED heat sink will accumulate dust, the heat of the light
source surface is quickly exported, so that the temperature rise of the LED chip and the power supply could be controlled within a reasonable range, which greatly guarantee the service life of the chip and power supply.

3. The light projection is even and soft, especially suitable for various low-top, platform, high-top, high-shed and other places as fixed lighting. The interior of the lamp body is made of anti-vibration material and shock­absorbing structure, which can work in various high-frequency and strong vibration places for a long time.

4. The larger power supply cavity design not only greatly satisfies the assembly space, but also further improves the heat dissipation performance.

5. In Various Locations can use this light with easy to relocate portable trolley Tower Light.
Supplied with Zone-I, & Zone-II EXPLOSION -PROOF LED FLOOD LIGHT OPTIONS 4 X l00W, 4 X 200W, 4 X 300W with U-bracket(adjustable angles) are available …
